API Standard 114.3mm Aluminium Alloy Float Collar and Float Shoe Cementing Tool with 70MPa and 204°C Seal for Oil Well

API Standard 114.3mm Aluminium Alloy Float Collar and Float Shoe Cementing Tool with 70MPa and 204°C Seal for Oil Well

114.3mm Float Collar

70MPa Float Shoe

204°C Seal Cementing Tool

उत्पत्ति के प्लेस:

जियांगसु, चीन

ब्रांड नाम:

SWS

संपर्क करें

एक उद्धरण का अनुरोध करें
API Standard 114.3mm Aluminium Alloy Float Collar and Float Shoe Cementing Tool with 70MPa and 204°C Seal for Oil Well API Standard 114.3mm Aluminium Alloy Float Collar and Float Shoe Cementing Tool with 70MPa and 204°C Seal for Oil Well API Standard 114.3mm Aluminium Alloy Float Collar and Float Shoe Cementing Tool with 70MPa and 204°C Seal for Oil Well API Standard 114.3mm Aluminium Alloy Float Collar and Float Shoe Cementing Tool with 70MPa and 204°C Seal for Oil Well API Standard 114.3mm Aluminium Alloy Float Collar and Float Shoe Cementing Tool with 70MPa and 204°C Seal for Oil Well API Standard 114.3mm Aluminium Alloy Float Collar and Float Shoe Cementing Tool with 70MPa and 204°C Seal for Oil Well
उत्पाद विवरण
आयाम:
50*30*30
वज़न:
10 किलोग्राम
कोर घटक:
वाल्व
वाल्व प्रकार:
सिंगल वाल्व और डबल वाल्व
प्रसंस्करण प्रकार:
फोर्जिंग
विनिर्देश:
2-3/8~20"
धागा प्रकार:
BTC\LTC\ विशेष थ्रेड\EU\NU
इस्पात श्रेणी:
N80\L80\P110
बोर ओडी:
6 "
बोर आईडी:
4 3/4"
मूंगफली:
2"
धागा प्रकार:
5 1/2 "एलसीएसजी
दाब मूल्यांकन:
70MPA
तापमान रेटिंग:
204°C
वाल्व आकार:
70 मिमी और 90 मिमी
संबंधित उत्पाद
अच्छा मूल्य API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling ऑनलाइन

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

सर्वोत्तम मूल्य प्राप्त करें
अच्छा मूल्य API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling ऑनलाइन

API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling

सर्वोत्तम मूल्य प्राप्त करें
अच्छा मूल्य API 5CT 7-5/8

API 5CT 7-5/8" L80 BTC/LTC Eccentric Multiple Flank Jets Aluminum Alloy Float Shoe for Cementing Tool

सर्वोत्तम मूल्य प्राप्त करें
अच्छा मूल्य Customizable API 5CT High Pressure Double Plug Cementing Head with 35MPa Working Pressure and 1 Year Warranty ऑनलाइन

Customizable API 5CT High Pressure Double Plug Cementing Head with 35MPa Working Pressure and 1 Year Warranty

सर्वोत्तम मूल्य प्राप्त करें
संपर्क करें
86-519-83553967
Leo@service-js.com
86-519-83553967
अभी संपर्क करें
उत्पाद वर्णन
API 4-1/2" 114.3mm Aluminium Alloy Float Collar and Float Shoe Cementing Tool
API Standard 114.3mm Aluminium Alloy Float Collar and Float Shoe Cementing Tool with 70MPa and 204°C Seal for Oil Well 0 API Standard 114.3mm Aluminium Alloy Float Collar and Float Shoe Cementing Tool with 70MPa and 204°C Seal for Oil Well 0
Product Specifications
Name Size(in) Bore O.D.(in) Bore I.D.(in) Min Bore Parameter(in) Thread Type lb(in²)
Float Collar 5 1/2" 6" 4 3/4" 2" 5 1/2" LCSG 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LCSG 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LCSG 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LCSG 3626
Float Shoe 5 1/2" 6" 4 3/4" 2" 5 1/2" LCSG 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LCSG 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LCSG 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LCSG 3626
Product Features
  • Essential casing equipment for primary cementing operations in oil wells
  • Guides casing to total depth and prevents contaminated mud entry
  • Provides landing point for casing wiper plugs
  • Reinforces lower end of casing string for improved cement slurry displacement accuracy
  • Hi Flow valves reduce fluid erosion and minimize pressure drop
  • Available in two valve sizes: 70mm and 90mm
  • PDC drillable composite plastic valve components
  • Standard seal rated to 150°C with optional 204°C seal
  • Valve body molded with fiber phenolic for 70MPa and 204°C seal
  • High-quality Canadian phosphor bronze springs with excellent restoring force

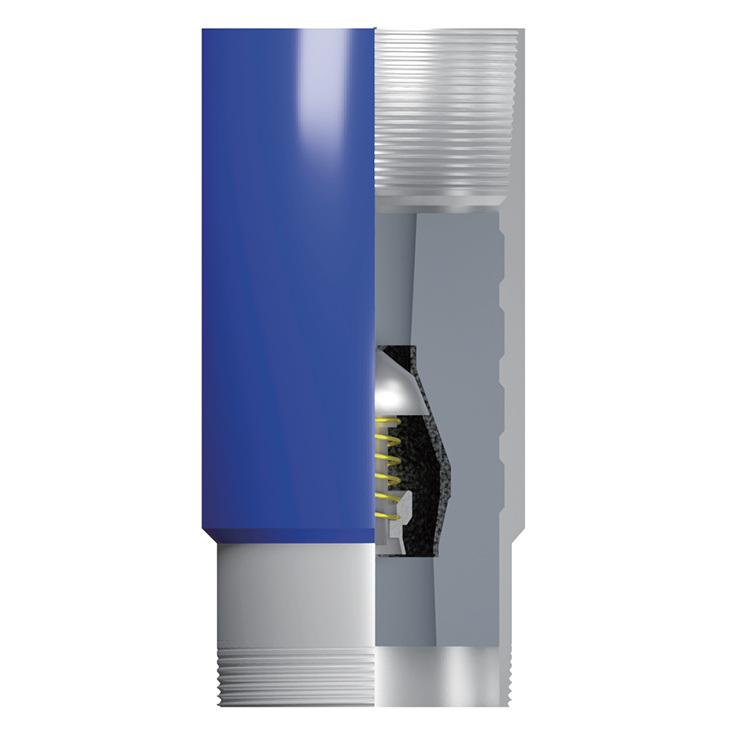

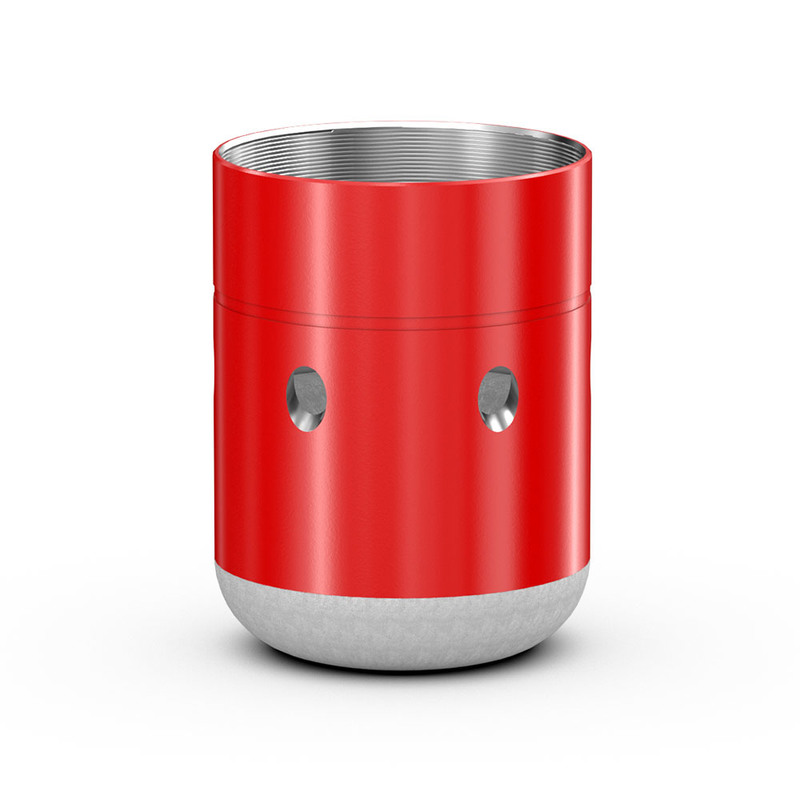

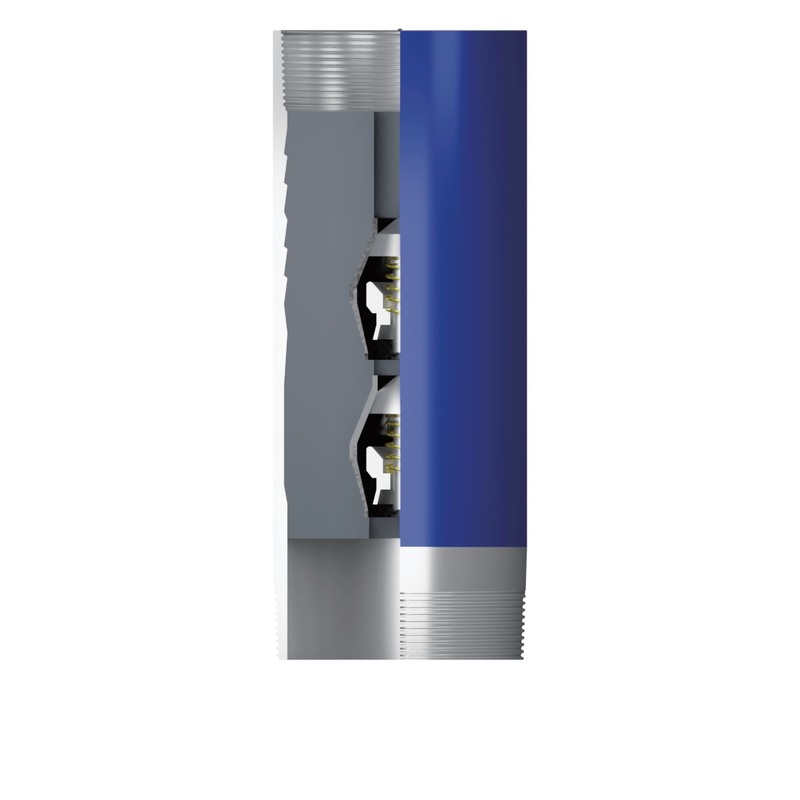

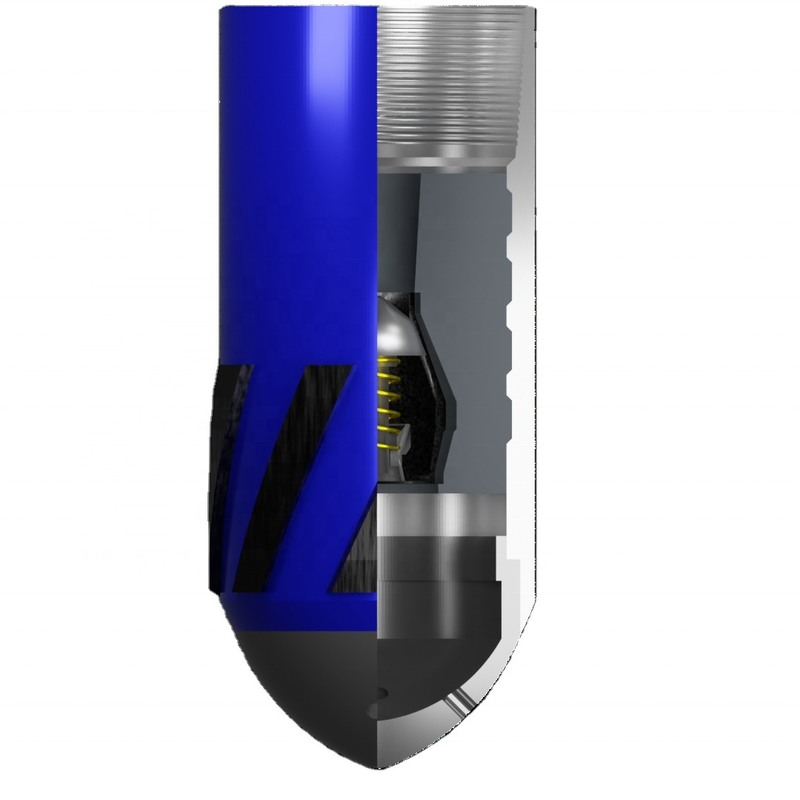

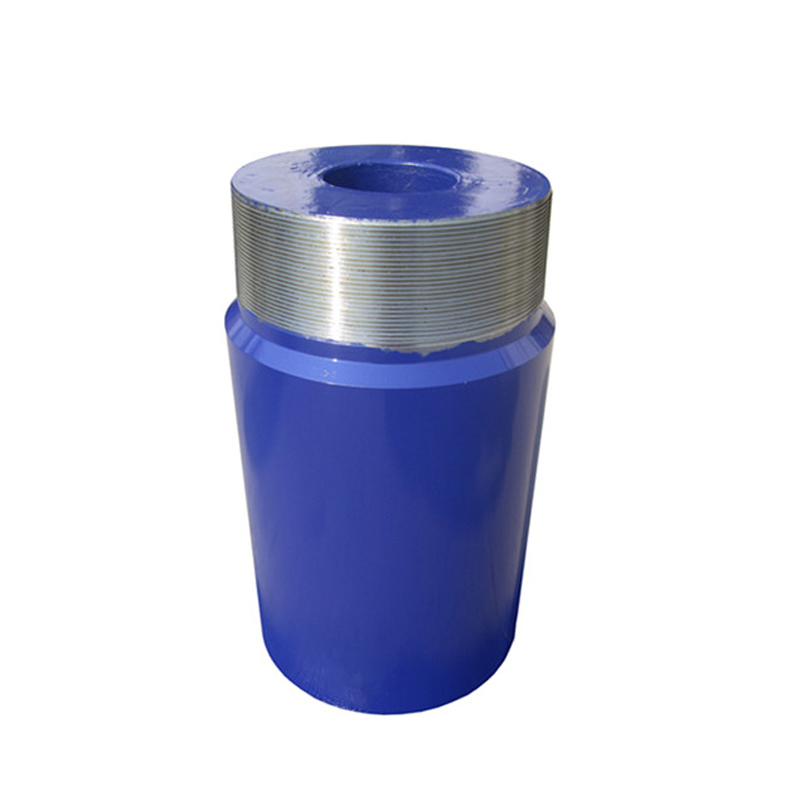

Product Images
API Standard 114.3mm Aluminium Alloy Float Collar and Float Shoe Cementing Tool with 70MPa and 204°C Seal for Oil Well 2 API Standard 114.3mm Aluminium Alloy Float Collar and Float Shoe Cementing Tool with 70MPa and 204°C Seal for Oil Well 3 API Standard 114.3mm Aluminium Alloy Float Collar and Float Shoe Cementing Tool with 70MPa and 204°C Seal for Oil Well 4 API Standard 114.3mm Aluminium Alloy Float Collar and Float Shoe Cementing Tool with 70MPa and 204°C Seal for Oil Well 5 API Standard 114.3mm Aluminium Alloy Float Collar and Float Shoe Cementing Tool with 70MPa and 204°C Seal for Oil Well 6 API Standard 114.3mm Aluminium Alloy Float Collar and Float Shoe Cementing Tool with 70MPa and 204°C Seal for Oil Well 7 API Standard 114.3mm Aluminium Alloy Float Collar and Float Shoe Cementing Tool with 70MPa and 204°C Seal for Oil Well 8
Frequently Asked Questions
When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard your inquiry as priority.
Could I have prices of your products?
Welcome. Please feel free to send us an email here. You will get our reply in 24 hours.
Can I get a lower price if I order large quantities?
Yes, cheaper prices are available for larger quantity orders.
Do you inspect the finished products?
Yes, each step of production and finished products will be inspected by our QC department before shipping.
What about the lead time for the mass production?
The lead time depends on the order quantity and the season you place the order.
